Industrial Gas Fired Lpg Fuel Burning Thermal Oil Boiler For Drying

Thermal oil boiler also called thermal oil heater, thermal fluid heater, hot oil boiler, heat transfer oil boiler, is a new type of special boiler with low pressure and high temperature working characteristics.

Work flow:

Thermal oil boiler uses hot oil as heat transfer medium, hot oil circulation pump to make the medium has a forced circulation, then deliver the heat to heating need equipment and then go back to the heating furnace.

Structure:

It adopts horizontal chamber-fired three-coil pipe structure, Yuanda thermal oil boiler body is composed of an outer coil pipe, a middle coil pipe and an inner coil pipe.

Application:

Thermal oil boiler can be used for heating in various production process where the heating temperature requirements is between 150℃ and 350℃.

Widely used for plywood processing factory, oil production factory, food processing factory, oil refinery, road construction asphalt plant, plastic and rubber industry etc.

Quick Details of Lpg Fuel Thermal Oil Boiler

LPG Thermal Oil Boiler Heater Unique Design Features:

1. Three pass coil pipes design, thermal oil goes through the coil pipes and fire in the furnace, which makes the boiler has big radiation heating area, highly improves the boiler efficiency and preventing deformation of boiler shell in high temperature heating.

2. Unique heating surface of the back of boiler--smoke turning around room is wet back design (smoke turning around room is surrounded with oil), which avoids dry heating of tube sheets and reduce heat loss.

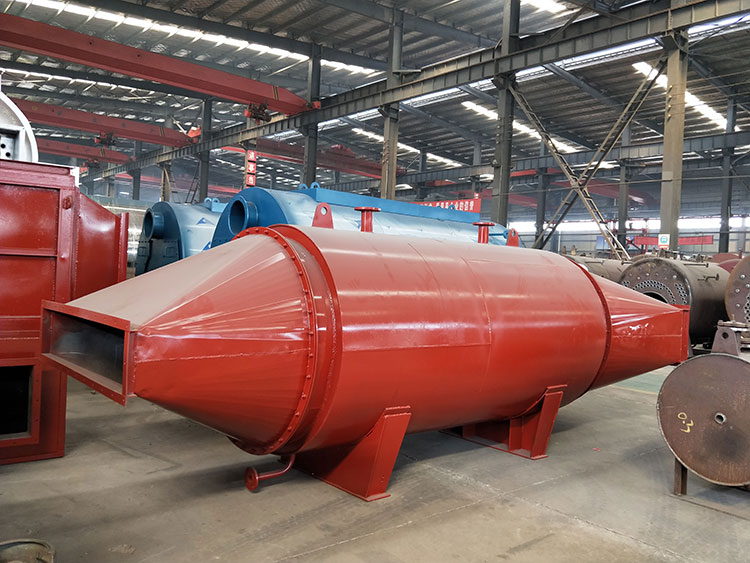

3. Energy saving device design, air pre-heater or waste heater boiler or economizer is designed at the end of the boiler, which makes the exhaust temperature low and improves 10% of boiler efficiency.

4. Outputting oil tank external design, slow down the rate of carbonization of fat and avoid accidents.

5. Dislocation double sealing slot design,secondary leakage prevention, which seals very tight and avoid leakage.

6. The boiler is equipped with world famous brand burners and valves groups such as Baltur, Riello, Weishaupt, Oilon etc. , 80% configuration, making the combustion more sufficient with lower failure rate.

Application field
1.Wood industry
Mainly used for hot-press forming of fiberboard, shaving board, plywood, veneer and heating for wood drying equipment, drying equipment, coating equipment and glue machine.
2.Building material industry
Mainly used for gypsum board drying, concrete member solidification protection and prefabrication production, tile lamination, decorative material drying and linoleum production line heat.
3.Textile printing and dyeing Industry
Mainly used for heating drying styling equipment, hot melt dyeing equipment, dyeing printing device, dryer, dryer, calender, flattening machine, washing machine, rolling mill, ironing machine, hot air stenter and so on.
4.Plastic and rubber industry
Mainly used for hot pressing, hot stretching, extrusion, kneading, mixing, vulcanization molding, injection molding machine, glue mixer, conveyor belt dryer, screw extruder and mold heating and insulation.
5.Chemical industry
Mainly used for distillation, evaporation, polymerization, condensation, de-emulsion, lipidation, drying, melting, dehydrogenation, forced insulation and the heating of synthetic equipment such as pesticides, intermediates, antioxidants, surfactants, perfumes.
6.Road construction
It is mainly used for heating and insulation of asphalt heating, dissolving, asphalt storage tank, asphalt concrete and emulsified asphalt.
7.Oil production industry
Decomposing, deodorization, oil acid distillation, hydrogenation and esterification reaction, etc.
8.Paper industry,
It is mainly used for heating of rubberized roller, drying roller, drying room, drying cabinet, hot melting machine, melting wax pot and corrugated paper processing.
9.Synthetic fiber industry
The thermal oil boiler is mainly used for heating, melting, spinning, thermosetting, fiber finishing, stretching and drying equipment.
10.food industry
Mainly used for bread baking equipment, biscuit food baking equipment, candy production equipment, grain drying equipment, edible oil extraction and refining equipment, distillation pot, autoclave, conveyor belt dryer heating.

YYQW series thermal oil boiler system and auxiliary list

Quality Control :

1. 100% Non-Destructive Inspection report of steel plate tube & welding rod;
2. 100% X-ray inspection report (welding seam), make sure welding totally qualified;
3. Hydraulic test: make sure strength and tightness of pressure parts

4.Third part inspection report: By China Henan Boiler Inspection Institute

After-sale service:

1. provide full range of original spare parts.

2. We will send engineers to your local project site to guide the installation and commissioning.

3. Our engineers will held a training for boiler workers to ensure the safe operation.

4. Free maintenance and repair for one year and lifelong service.

Why choose Yuanda Boiler?

1. Established in 1956 year as a Stated Owned Enterprise
2. 10 years export experiences
3. A-Class boiler manufacturer
4. ISO9001-2016 Quality Management System
5. Boiler commissioning service & Full-life after sale service
6. Annual production capacity of industrial boilers up to 5000 t/h and pressure vessels up to 6000 t/h.
7. Directly factory low price & Product-quality protection
8. Payment protection & Shipping protection .

Henan Yuanda Boiler Corporation Ltd. found in 1956, is China leading professional manufacturer for industrial boiler, coal fired boiler, gas fired boiler, biomass fired boiler, oil gas fired boiler and thermal oil boiler. Yuanda boiler is one of the leading leading enterprises which first obtained the national boiler manufacturing license in china. It is a high-tech enterprise integrating research and development, production and sales of heating system and power system.

The production base is located in Xihua County, Henan Province, and the R&D and marketing center is located in Zhengzhou City, the capital of Henan Province. The company has A-class boiler manufacturing qualification, D-class pressure vessel design and manufacturing qualification, and passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system.

With 63 years' experience in boiler design, production, installation and commissioning, our boilers have been exported to more than 80 countries worldwide by the end of 20 18. Totally we have successfully supplied tailor-made solutions for over 65,000 customers.

Why choose Yuanda boiler:

Founded in 1956, Grade-A boiler manufacturer, international well-known brand.

With 62 years experience in boiler design, technique, production, installation and commission.

Annual production capacity: industrial boilers up to 5000t/h and various pressure vessels up to 6000t/h.

Trade capacity: Yuanda boilers have been exported to more than 80 countries. China Top 5 export sales in boiler industry.

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.
