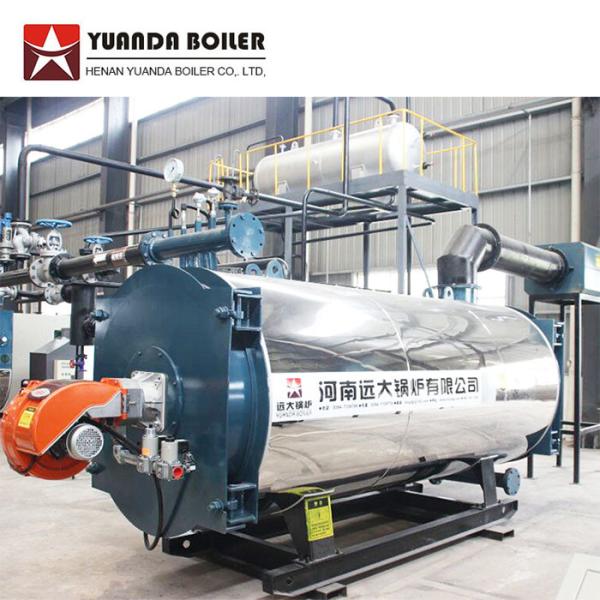

700KW Horizontal Three Pass Oil Gas Fired Thermal Oil Boiler Price

Thermal oil boiler also called thermal oil heater, thermal fluid heater, hot oil boiler, heat transfer oil boiler, is a new type of special boiler with low pressure and high temperature working characteristics.

Work Flow:

Thermal oil boiler uses hot oil as heat transfer medium, hot oil circulation pump to make the medium has a forced circulation, then deliver the heat to heating need equipment and then go back to the heating furnace.

Structure:

It adopts horizontal chamber-fired three-coil pipe structure, Yuanda thermal oil boiler body is composed of an outer coil pipe, a middle coil pipe and an inner coil pipe.

Application:

Thermal oil boiler can be used for heating in various production process where the heating temperature requirements is between 150℃ and 350℃.Widely used for plywood processing factory, oil production factory, food processing factory, oil refinery, road construction asphalt plant, plastic and rubber industry etc.

Quick Details

Oil Gas Fired Thermal Oil Boiler Unique Design Features:

1. Three pass coil pipes design, thermal oil goes through the coil pipes and fire in the furnace, which makes the boiler has big radiation heating area, highly improves the boiler efficiency and preventing deformation of boiler shell in high temperature heating.

2. Unique heating surface of the back of boiler--smoke turning around room is wet back design (smoke turning around room is surrounded with oil), which avoids dry heating of tube sheets and reduce heat loss.

3. Energy saving device design, air pre-heater or waste heater boiler or economizer is designed at the end of the boiler, which makes the exhaust temperature low and improves 10% of boiler efficiency.

4. Outputting oil tank external design, slow down the rate of carbonization of fat and avoid accidents.

5. Dislocation double sealing slot design,secondary leakage prevention, which seals very tight and avoid leakage.

6. The boiler is equipped with world famous brand burners and valves groups such as Baltur, Riello, Weishaupt, Oilon etc. , 80% configuration, making the combustion more sufficient with lower failure rate.

YYQW series thermal oil boiler system and auxiliary list

After-sale service:

1. provide full range of original spare parts.

2. We will send engineers to your local project site to guide the installation and commissioning.

3. Our engineers will held a training for boiler workers to ensure the safe operation.

4. Free maintenance and repair for one year and lifelong service.

FAQ

Q1: How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model. (2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient

for our communication.
Q2: Why should you believe our boiler quality?

(1).Strength calculation report with applied materials information;

(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;

(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;

(4).Hydrostatic test: ensure the standard working pressure and safety;

(5).Third-party inspection report:By Henan Boiler Inspection Institute;

(6).Passed ISO:9001 and SGS certificate.

Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning.

But the buyer will be in charge of :

(1) The round air-tickets costs from Zhengzhou city to your project site.

(2) Board and lodging of seller's workers for entire period at the end user's site.

(3) Service fee for guiding engineer:100$/day/person.

Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

Henan Yuanda Boiler Corporation Ltd. found in 1956, is China leading professional manufacturer for industrial boiler, coal fired boiler, gas fired boiler, biomass fired boiler, oil gas fired boiler and thermal oil boiler. Yuanda boiler is one of the leading leading enterprises which first obtained the national boiler manufacturing license in china. It is a high-tech enterprise integrating research and development, production and sales of heating system and power system.

The production base is located in Xihua County, Henan Province, and the R&D and marketing center is located in Zhengzhou City, the capital of Henan Province. The company has A-class boiler manufacturing qualification, D-class pressure vessel design and manufacturing qualification, and passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system.

With 63 years' experience in boiler design, production, installation and commissioning, our boilers have been exported to more than 80 countries worldwide by the end of 20 18. Totally we have successfully supplied tailor-made solutions for over 65,000 customers.

Why choose Yuanda boiler:

Founded in 1956, Grade-A boiler manufacturer, international well-known brand.

With 62 years experience in boiler design, technique, production, installation and commission.

Annual production capacity: industrial boilers up to 5000t/h and various pressure vessels up to 6000t/h.

Trade capacity: Yuanda boilers have been exported to more than 80 countries. China Top 5 export sales in boiler industry.

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.
