PLC Automatic Control Industrial Fire Tube Gas Fired Steam Boiler 5 ton

I Brief intrduction of gas fired steam boiler

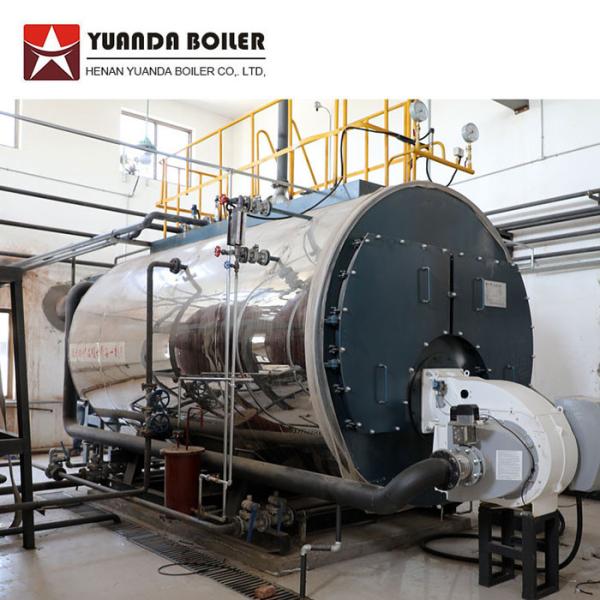

Gas fired steam boiler is Yuanda WNS series boiler, it is package type full automatic horizontal three pass fire tube wet back structure boiler. The boiler can produce hot water, saturated steam or superheated steam. It’s adaptable for wide ranges of fuels such as natural gas, LPG, biogas, methane gas, diesel heavy oil etc. Wide applicable textile mill, milk pasteurization,corrugated machine, sugar factory,pringting dyeing mill,medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, etc.

2. Quick Details of WNS gas fired steam boiler

3. Yuanda gas fired steam boiler core design technology

Adopt the advanced corrugated furnace design, the combustion chamber with large volume. It enlarged the furnace diameter and create a bigger radiant heat exchange area, so increased the boiler thermal efficiency.3. WNS gas steam boiler design features:
1. Big corrugated furnace

2. The boiler is equipped with world famous brand burners and valves groups such as Baltur, Riello, Weishaupt, Oilon etc. , 80% configuration, making the combustion more sufficient with lower failure rate.

3. thread smoke tube technology

Strengthen the heat transfer and reduce the number of smoke tubes and boiler shell size.Reduce the thermal stress at the tube end to prevent cracking of tube sheet.

4. Wet back structure

Wet-back smoke chamber, the whole smoke chamber is inside boiler proper, directly heating water in boiler proper, greatly increase boiler heating efficiency. It can also lower the temperature of back tube

4. Safety System each part of the fired steam boiler is designed based on the safety.

1. Independently developed PLC control panel, better match our boiler operation. Siemens PLC with 10 inch touch screen and frequency transformer, more safety and easy operation.

Safety control system:

1.1 Control the burner, water feeding, pressure, exhaust gas temperature

1.2 Control the burner ignition and flame-out automatically; The burner can switch over from large fire to small fire.

1.3 Control the water feeding:

Automatic Alarm when the water level is higher or lower than normal water level, safety interlock when the water level is over-high or over-low.

When the water level is low, the boiler system will feed water automatically, when the water level is high, the boiler will stop feeding water. When the water level lower than 0 or over-high, the boiler burner flame out.

1.4 Pressure control: Safety interlock for over-high pressure.

1.5 Control the exhaust gas temperature

when the flue gas temperature is over-high, it will control the boiler alarm firstly and then the burner flame out, the boiler shutdown.

5. WNS diesel gas steam boiler system and auxiliary list:

6.Economizer

Aluminium-steel Fins with high conductivity co-efficient.

ND steel sheel to prevent the corrosion of sulfur

Aluminium Silicate insulation, release heating loss, reduce economizer outer cover temperature.

Large size heating area, adequate heating exchange area, greatly make use of heat energy of exhausted gas to heat feed water, increase boiler efficiency;

7.After-sale service:

1. provide full range of original spare parts.

2. We will send engineers to your local project site to guide the installation and commissioning.

3. Our engineers will held a training for boiler workers to ensure the safe operation.

4. Free maintenance and repair for one year and lifelong service.

8. FAQ

Q1: How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model. (2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient

for our communication.
Q2: Why should you believe our boiler quality?

(1).Strength calculation report with applied materials information;

(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;

(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;

(4).Hydrostatic test: ensure the standard working pressure and safety;

(5).Third-party inspection report:By Henan Boiler Inspection Institute;

(6).Passed ISO:9001 and SGS certificate.

Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning.

But the buyer will be in charge of :

(1) The round air-tickets costs from Zhengzhou city to your project site.

(2) Board and lodging of seller's workers for entire period at the end user's site.

(3) Service fee for guiding engineer:100$/day/person.

Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
